General Connector chart

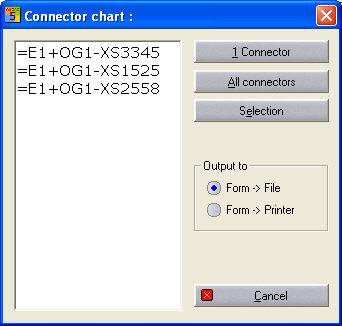

The Connector chart is the evaluation of the plugs and sockets which exist in the project. The forms for the evaluation can be organised without restriction. By using wildcards, the values can be selectively entered in the lists which are required for the documentation. The evaluation is carried out using the menu option Automatic / Connector chart. This menu option invokes a dialog in which the output of the Connector chart can be determined. In this, click on Selection and all the plugs in the current project will be listed.

• With the 1 Plug button, you are requested to select the relevant plug on the page for which the plug diagram is to be created.
• All plugs selects all the plugs in the project.
• Selection displays all the plugs found in the project (selection is made by clicking with the mouse)

• The plug diagram can then be output via a form, into a file or on the printer.  For this, you must always select the form to be used from a dialog.

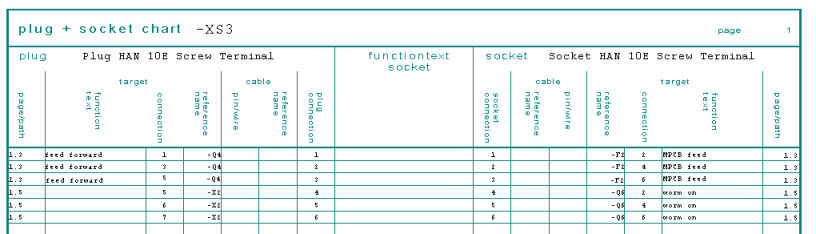

Example Connector chart
