On
request, you must click on a terminal
connection from the desired terminal
strip. Then you have to
select the output device.
On
request, you must click on a terminal
connection from the desired terminal
strip. Then you have to
select the output device.

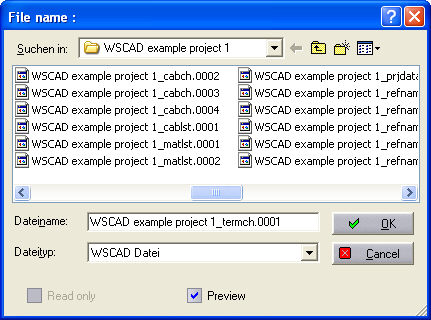

On file you must decide the filename for the new terminal diagram.

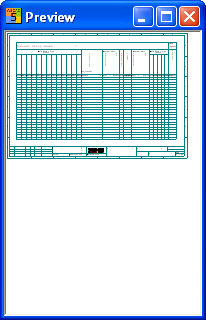

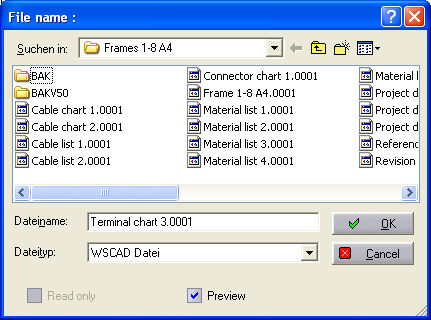

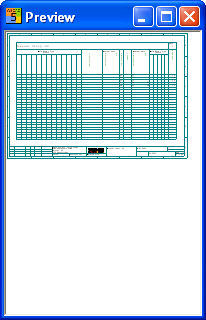

Then select the appropriate form in a dialog. This form is filled with the information from the circuit diagram and printed out or displayed on the screen.
