The cable browser draws its information from cable management and the databases of parts management and WSCAD codes. It can be opened directly via the menu Automatic funct. / Cable / Browser (compact and professional) or via cable management, as well as with a click of the right mouse button on a cable conductor symbol and the subsequently appearing browser parameter menu.
Modify
View
Autom. Listings
Settings
Modify Part number

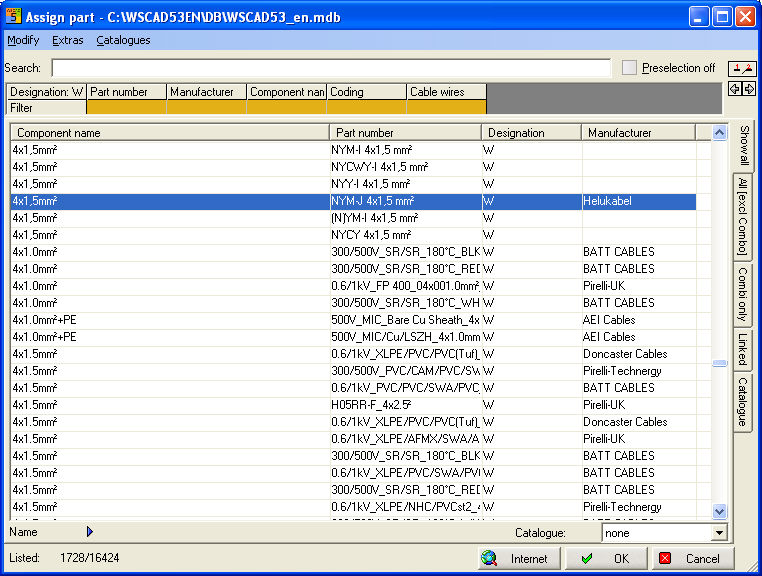

Part number starts the database with cables preselected. Choose a new the part number is now assigned to the selected cable.
Modify Color code

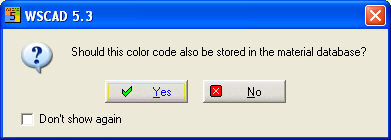

If the color code was modified, you will be asked if the change shall be stored
The storage of modifications are requested.

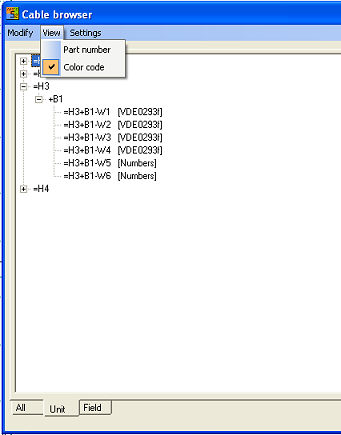

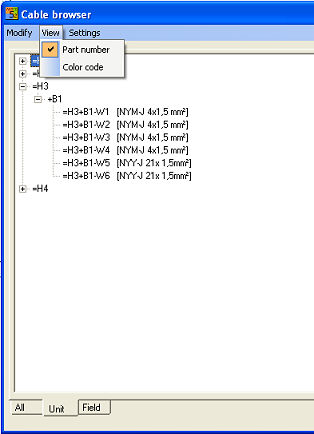

Menu View shows you the part number and/or the color code with the application of the bookmark system (the options are active only here).
|
Part number |
Color code |
|
|
|
Menu Autom. Listings, choose Cable list or cable chart for a cable.
Menu Settings,
define the color settings to get an optical difference for the color code
in the Cable browser.

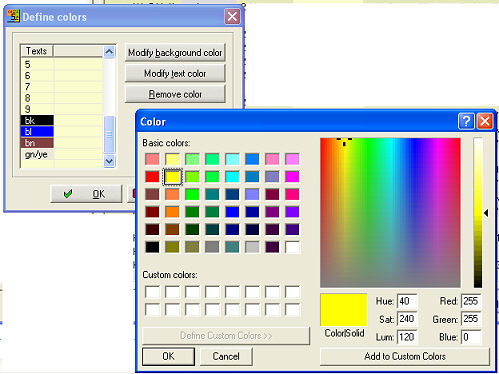

You can modify background and text colors.
|
Color you get an dialogue which shows all single colors or numbers. |
Select a recognized conductor designation (e.g. sw) and set the corresponding background color and text color. |
|
|
Result:
|
Other functions

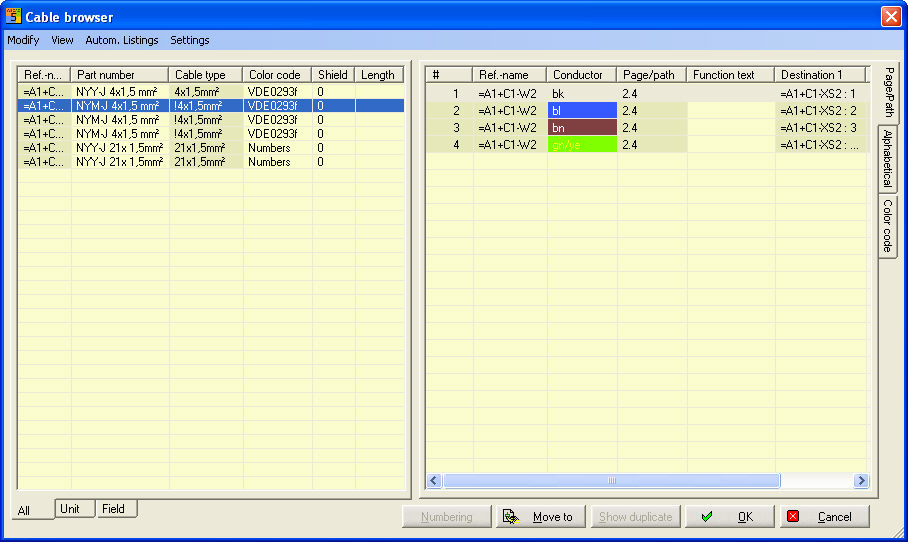

Left side reference view:
The columns of the table can be displayed or hidden as well as moved at will.
Bookmarks (All System Location) serve for a better overview in large CPP projects with unit and field codes (UFD).
The columns color code and length can be edited directly or via parts management or code table. For this you double-click the respective field. By clicking on the field part, you start, for example, parts management.
|
Color code |
Length |
|
|
|

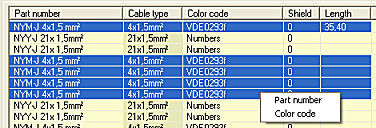

Make a multiple selection
(Ctrl+single click on entries or click on the first and then Shift+last)

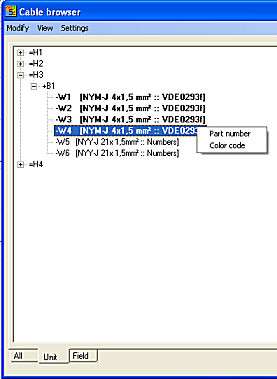

and then click with the right mouse button in the selection and a context
menu will open (part number, color code). Depending on the selection,
you can allocate a new part number or a new color code for all selected
elements.
|
Tab All |
Tab Unit |
|
|
|
Right side view of individual conductor
The columns of the table can be displayed or hidden as well as moved at will.
Bookmarks (Page / Path, Alphabetical, Color code) serve for better sorting.
With the field Conductor,
you can directly modify the respective assigned conductor designation

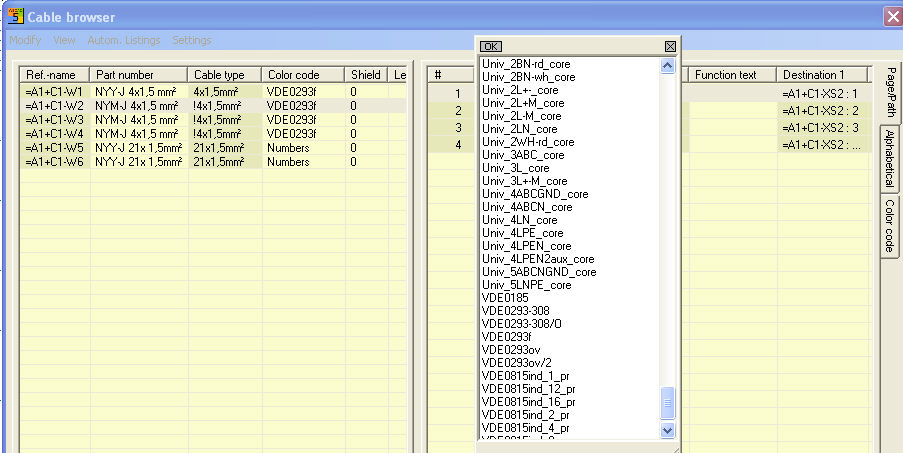

(color code or number). Double-click in the field and you will see a list
of all the conductor designations deposited in this color code.
Here you can see that the currently assigned color is black (-> bk) and that the red conductor designations are occupied. If you select an occupied conductor designation, they will be exchanged. If you select a free color, this will be used instead. In this example, you can see that conductor designations can repeat themselves. In this case, a definite assignment can be achieved through an internal index.
Directly enter the function text for the respective conductor here.
Select individual
conductors by multiple selection in order to resort the conductors
with the Number box in relation
to the internal index. The lowest
index is at the top.
Move to
The function Move to is only active if a conductor has been selected. If after the selection you click on Show, the cable browser closes and jumps to this conductor in the circuit chart.
Show duplicate
The function Show duplicate is only active if a conductor has been selected for which there is a duplicate. If after the selection you click on Show duplicate, the cable browser closes and jumps to this conductor in the circuit chart.
Numbering
The field conductor on the right side of the browser can be automatically numbered if online cable management is switched off. This enables a number-related representation of the conductors in the circuit chart without using the color code of the database. This is also possible in the compact version.
For this purpose, you click on the first conductor that is to be numbered and put in your start number. Then while pressing the Ctrl key go to the last conductor you want to number. All conductors in between are thereby selected. If you now activate the Number box, the conductors will always be numbered by 1 up. If you enter a number in the top conductor field, this will be used as the start number.
Expert

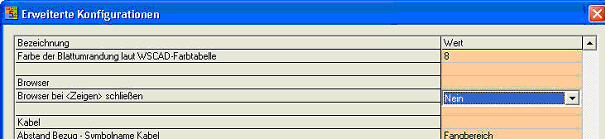

If you set the option Browser / Close browser at <Show> on No, the browser will remain visible.
