Cable list

With the cable list, you can generate a list of all the cables in a project in the professional version. Output directly to the printer, to a file (always via WSCAD form), an ASCII file (define fields), an Access or an Excel file. External output options can be provided with an automatic opening function.

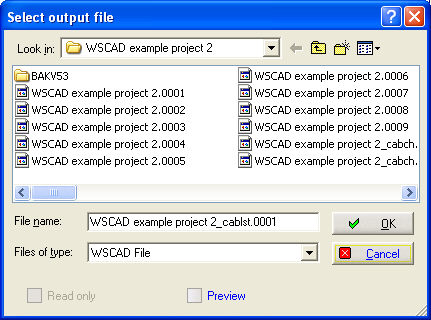

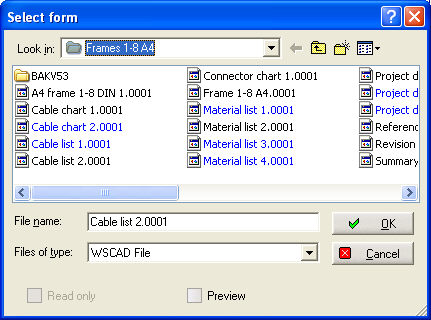

Determine the target file and the form (different for circuit charts and installation chart).

Afterwards, you have to enter the sorting criterion. In the output of the cable list, you can sort according to the following criteria..
