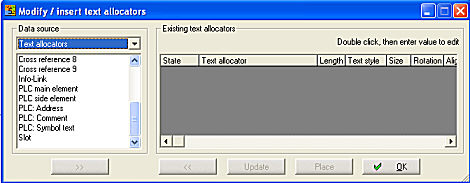

In the Text allocator dialogue you can necessary text allocators formatting and positioning in symbols. In the Data source selection Text allocator you find all necessary allocators as descripted in General rules for PLC symbols.
Possible allocators for PLC Symbols
Crossreference 0..9
Comment and Symbol text
Address
Main- Side element
Info-link : This additional text allocators permits the use of the further databased text allocators to the data source info link. Only if this text allocator is positioned in the symbol, the databased text allocators becomes active. It can be used in all symbol types.
Assembly: This text allocators is used in the PLC manager
Slot: This text allocators is used in the PLC manager

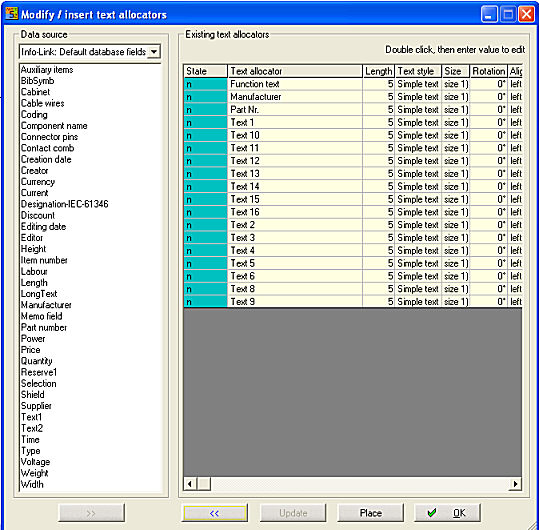

Info-link text allocators
Beside all database fields of the Part manager still the symbol parameters of the linked symbols can be used as text allocators.
