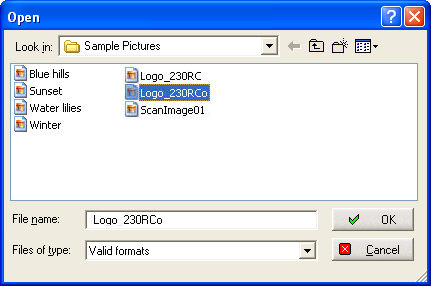

Load with the menu option Draw / Insert graphic (max. size of 32 KB) a prepared picture of a construction unit into the symbol editor.

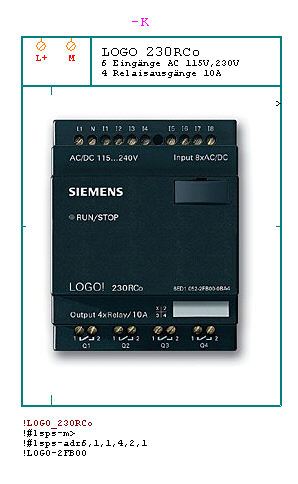

With the scaling methods of the diagram you can adapt the bitmap in the size. Position the bitmap at the Editor. Select the bitmap with the right mouse button and select in the context menu the resize option, if you want to increase or make the picture smaller. Set the pins and/or other parameters as used and store the symbol in any library.

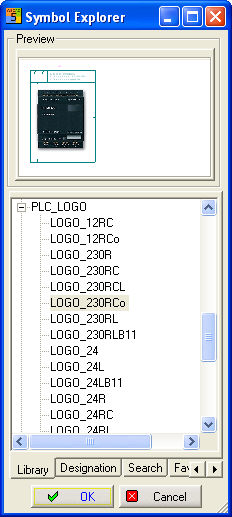

The symbol appears as used in the Symbol Explorer .
