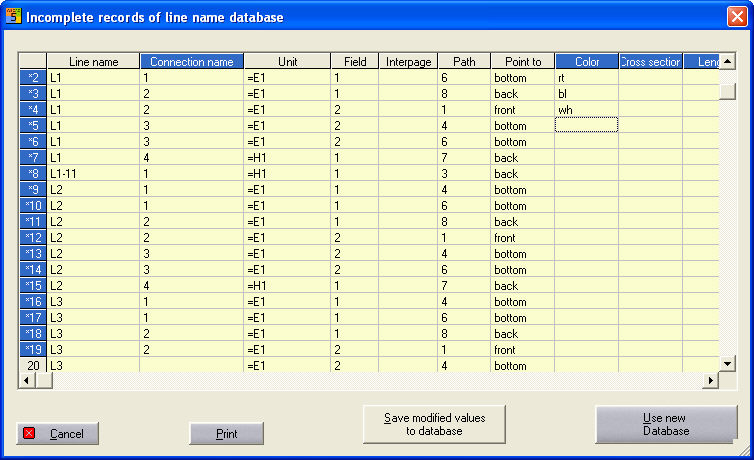

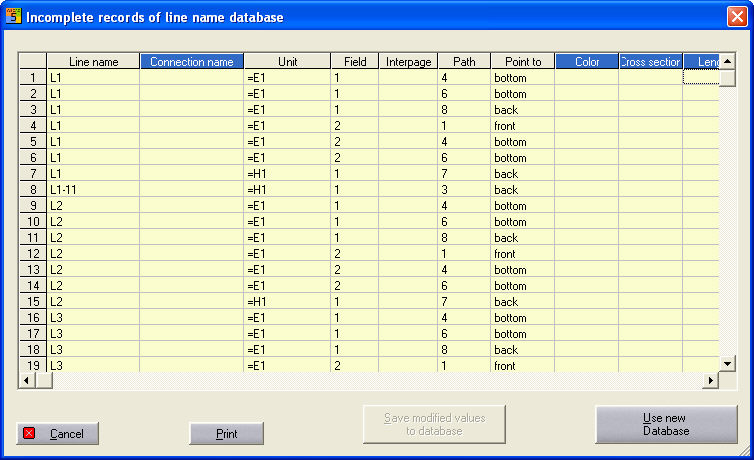

A consistency test can be performed on the line-name database under the menu Tools / Line-name database. This file is located in the project directory and the project name is extended with *_VLTGN.MDB. The file is an ACCESS database. When this menu command is executed, a new line-name database is created and the variables Connection name, Colour, Cross section and Length are transferred from the original line-name database, providing the new coordinates and the line names agree with the original ones. Data records which do not agree with the original ones are displayed in a dialog.

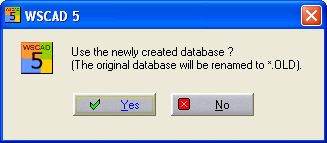

Make all changes and save it back to the database.
The content of the table can be printed out.
