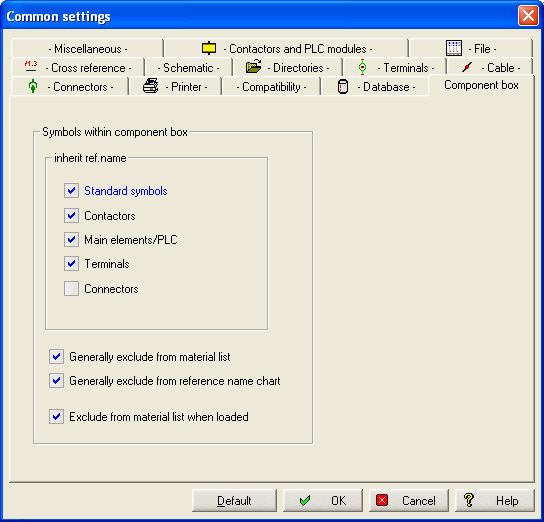

In configuration, you define the parameters of the component box.
The parameter values apply to the symbols inside the component box.
Copy reference means that the reference name of the symbol will always be combined with the reference of the component box. This extended reference name will be the same in all managers and generated lists. A special case is when the symbol reference was deleted, then the reference of the component box will be the only reference.
The symbol types standard, contactor (only coil), main element / PLC, terminals, connectors (and sockets) can be selected for copying.
With the option Generally block for material list, the output of the symbols inside the component box can be generally blocked for the material list.
With the option Generally block for reference list, the output of the symbols inside the component box can be generally blocked.
Block when loading for material list concerns only symbols which were loaded subsequently into the component box (when the option is activated).
