Component Box

The component box with identical reference name can presented multiple.

Though it will defined a main reference (with the symbol parameter) to a master symbol. If for a reference the master is defined multiple, the first per coordinate recognized symbol is overtaken for producing the cross reference.

If you generate a cross reference run with Automatic/Automatic cross reference/Component box all cross references are written under the reference name.

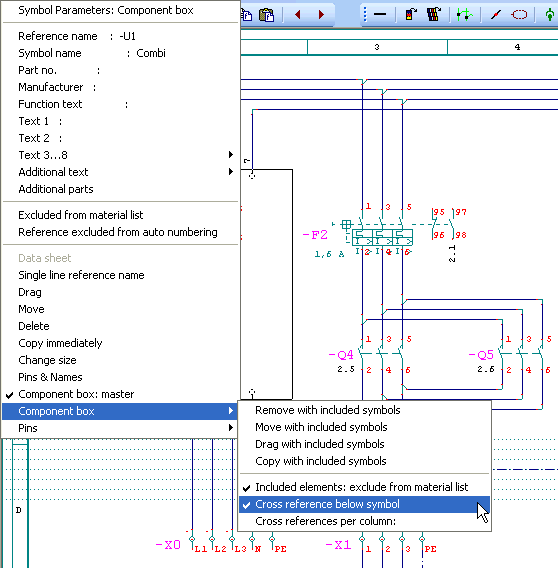

In another case you have the option below symbol.











Multiple definition of main elements:
