The
reference names
of all symbols can be printed on labels. For this purpose, you have to
provide certain data (e.g. width, height, distance, etc.) about the labels
you need.
The
reference names
of all symbols can be printed on labels. For this purpose, you have to
provide certain data (e.g. width, height, distance, etc.) about the labels
you need.

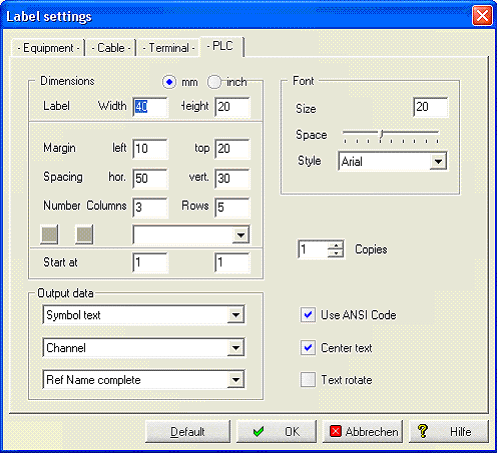

The text to be printed will be positioned on the sheet according to these guidelines. You can define for example Dimensions, Fonts Margins and make Selections.
You can save the composition with an appropriate name. In order to do this, you enter a name in the middle line and then click on the disk symbol. You can delete the file with the red X.
Start at means to begin printing at Column x and Row y .
Output data
This could be a mix of several selections. There are three drop-down menus to select the output data.
Copies
With the setting Copies, you can achieve output of equipment and cable labels in 1 to 9 copies.
Use ANSI-Code
With the option Output in ANSI code, you can determine if DOS or ANSI (=Windows) code sets shall be used for labelling systems in the output to a file. When the setting is wrong, special letters such as ä or Ü are displayed incorrectly.
Rotate terminal number
The terminal number is rotated by 90o anticlockwise when output.
