The HW configuration data for PLC components, defined in e.g. Unity Pro XL, can be loaded with the PLC management.

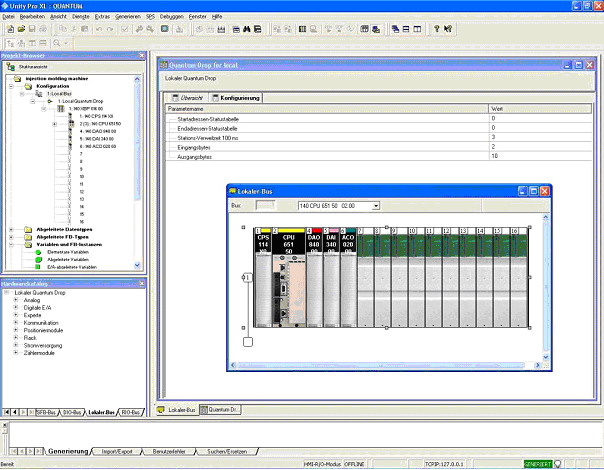

Example HW configuration:

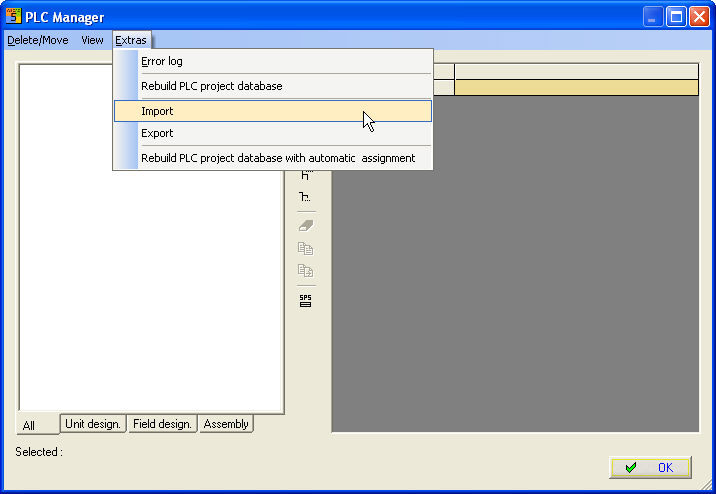

Data are loaded with PLC management menu Extras / Import. There must be a *.cfg file to load.

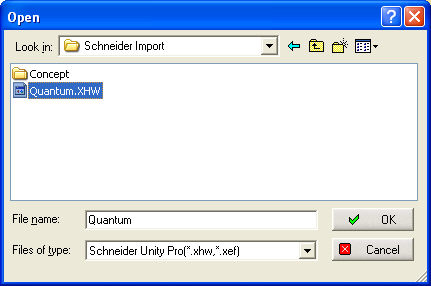

Load appropriate data:
Data are overtaken now in the PLC Manager.

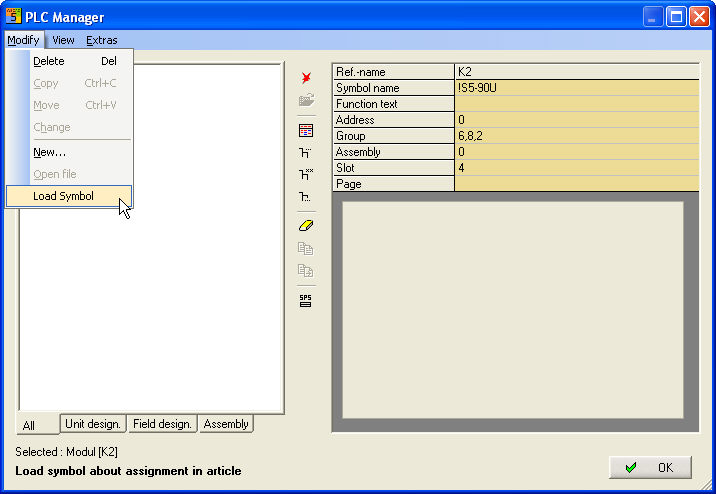

Load marked symbol in the drawing.
Symbol and part data are linked together.
