The HW configuration data for PLC components, defined in e.g. SIMATIC 300, can be loaded with the PLC management.

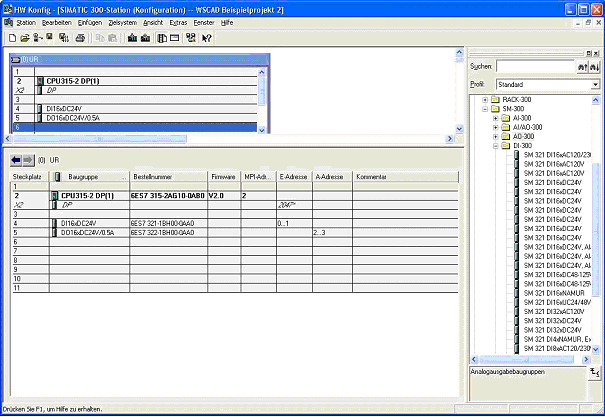

Example HW configuration:
Data are loaded with PLC management menu Extras / Import. There must be a *.cfg file to load.

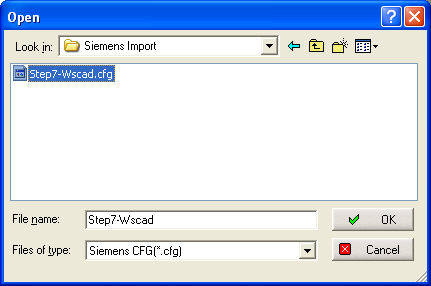

Load appropriate data:

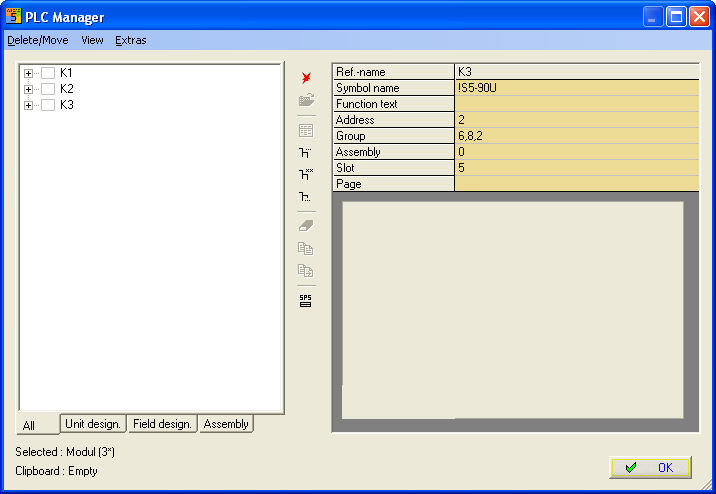

Data are overtaken now in the PLC Manager.
Load marked symbol in the drawing.
Symbol and part data are linked together.
